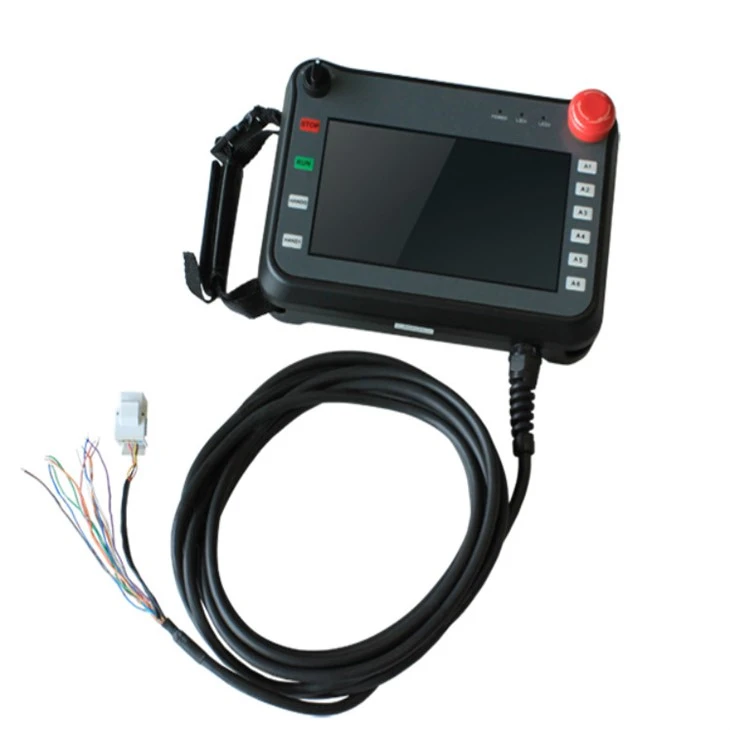

XH7GES handheld touch screen
Handheld HMI is a portable touch display device used for real-time interaction between industrial sites and equipment, supporting mobile operation and data monitoring.
Product features
High-Resolution Display
The XH7GES Handheld Touch Screen features a 7-inch TFT display with an 800×480 resolution, ensuring accurate information presentation during on-site operations.
Flexible Operation Modes
The device supports both button and touch operation, making it suitable for industrial scenarios requiring high safety and flexibility.
Stable Communication Capabilities
The XH7GES is equipped with RS485 and RS232 communication interfaces, supporting connectivity with a variety of industrial devices.
High-Safety Design
A built-in emergency stop switch and multi-function switch ensure rapid shutdown of the device in an emergency.
Durability and Adaptability
The engineering plastic housing is shock-resistant and shock-resistant, and can operate in temperatures ranging from -10°C to 60°C, ensuring reliable operation in harsh environments.
Product specification
|
Model |
XH7G |
XH7GS |
XH7GE |
XH7GES |
|
Performance specification |
||||
|
Display size |
7"TFT |
|||
|
Resolution |
800×480 pixel |
|||
|
Display color |
16.77M color |
|||
|
Brightness |
250 cd/m² |
|||
|
Backlight |
LED |
|||
|
Touch panel |
4 line precision resistance network(surface hardness 4H) |
|||
|
Backlight life |
50000 hours |
|||
|
Programmable key |
10 |
|||
|
Programmable LED |
2 |
|||
|
Emergency stop switch |
1 |
|||
|
3choiceswitch |
1 |
|||
|
Holding switch |
None |
1 |
None |
1 |
|
CPU |
ARM RISC32Bit 800MHz |
|||
|
Storage |
128MB NAND Flash Memory+128MB DDR3 Memory |
|||
|
RTC&Recipe memory |
Real time clock+256KB |
|||
|
Extensible memory |
1 USB Host |
|||
|
Print port |
1RS485,RS232 |
None |
||
|
Ethernet |
None |
One 10/100MHz adaptive port |
||
|
Program download |
serial port(RS232)/USB |
USB/Ethernet |
||
|
Communication port |
RS485,RS232 |
Ethernet |
||
|
Electrical specifications |
||||
|
Power |
Built in isolation |
|||
|
Rated power |
8W |
|||
|
Rated voltage |
DC24V |
|||
|
Input power supply |
DC16~32V |
|||
|
Allowable loss of power |
<3ms |
|||
|
Insulation resistance |
Over 50MΩ@500VDC |
|||
|
Hi-pot test |
500VAC1minute |
|||
|
Cablelength |
5M |
|||
|
Structure specifications |
||||
|
PCB |
none of spraying |
|||
|
Shellcolor |
Black |
|||
|
Shell material |
Engineering plastic |
|||
|
Shape size |
220×156×45mm |
|||
|
Install |
Bracket installation/suspension installation |
|||
|
Environmental specifications |
||||
|
working Temperature |
0~50℃ |
|||
|
working Humidity |
10~90%RH(non-condensing) |
|||
|
Storage temperature |
-10~60℃ |
|||
|
Storage humidity |
10~90%RH(non-condensing) |
|||
|
Sinusoidal vibration test |
10～500Hz,30m/s²,X,Y,Z direction/hour |
|||
|
Cooling mode |
Natural air cooling |
|||
Applications
Industrial Field Operations
Applied to production line monitoring and equipment debugging. Operators can use this device to view equipment status in real time, adjust parameters, and quickly respond to equipment issues.
Equipment Inspection and Maintenance
The XH7GES, as a handheld terminal, helps maintenance personnel directly access equipment data, diagnose problems, and make adjustments on-site.
Logistics and Warehouse Management
Used for inventory management and cargo tracking. Workers use the handheld device to scan barcodes, query inventory data, and instantly update system information.
