XC850 Photovoltaic frequency converter
The XC850 photovoltaic inverter adopts the technology widely used in various AC asynchronous pumps and synchronous pumps. It has a high protection level IP65 design, is suitable for outdoor installation, and can withstand harsh environmental conditions. The system supports DC and AC power input, and the optimized maximum power point tracking (MPPT) algorithm ensures more than 99% high-efficiency energy conversion, which can maximize the use of solar energy for pump driving and greatly improve energy efficiency. The operating temperature range is -25°C to 60°C, and it can work stably under various extreme weather conditions. It adopts natural cooling and low-noise operation, which greatly reduces maintenance costs and environmental impact. In addition, the system is equipped with GPRS remote monitoring function, which can view the operating status of the equipment in real time and realize remote start and stop control.
Application
Product features
- Solve the problems of agricultural irigation,dailywater use,and desert management in areas with no electricity and water shortage
- Widely used in various AC asynchronous pumps and synchronous pumps
- IP65 design,high protection level outdoor installation model
- Compatible with DC/AC power input
- 0ptimized MPPT algorithm,efficiency is over 99%
- 0perating temperature range:-25~60 degrees
- Adopt natural cooling method,low noise
- GPRS remotemonitoring of real-time operation status,real-timestart and stop(optional)
- Excellent performance,large water output
Product specification
|
Model |
Recommen ded Solar Power (kW) |
Maximum Input DC Current (A) |
Rated InputAC Current (A) |
Rated Output Current (A) |
Adaptive Motor (kW) |
|
XC580-2S-0.4 |
0.6 |
15 |
6.5 |
4.2 |
0.4 |
|
XC580-2S-0.7 |
1.0 |
15 |
9.3 |
7.5 |
0.75 |
|
XC580-2S-1.5 |
2.0 |
30 |
15.7 |
10.5 |
1.5 |
|
XC580-2S-2.2 |
2.9 |
30 |
24 |
17 |
2.2 |
|
Input Specification |
|
|
PV Input |
|
|
Maximum Input DC Voltage |
450VDC |
|
Recommended Voc Range |
360~~-430VDC |
|
Recommended MPPT Voltage Range |
100~400VDC |
|
Starting Voltage Range |
80~450VDC |
|
Grid or backup generator input |
|
|
Input voltage |
200-260VAC(1PH) |
|
Output specification |
|
|
Ratedoutput voltage |
220V/230VAC(1PH or 3PH) |
|
Output frequency |
0-50/60Hz |
|
Protection |
|
|
Built-in Protection |
Lighting Protection, over-current, overvoltage output phase-lose under-load,under-voltage,short circuit,overheating, water pump run dry etc. |

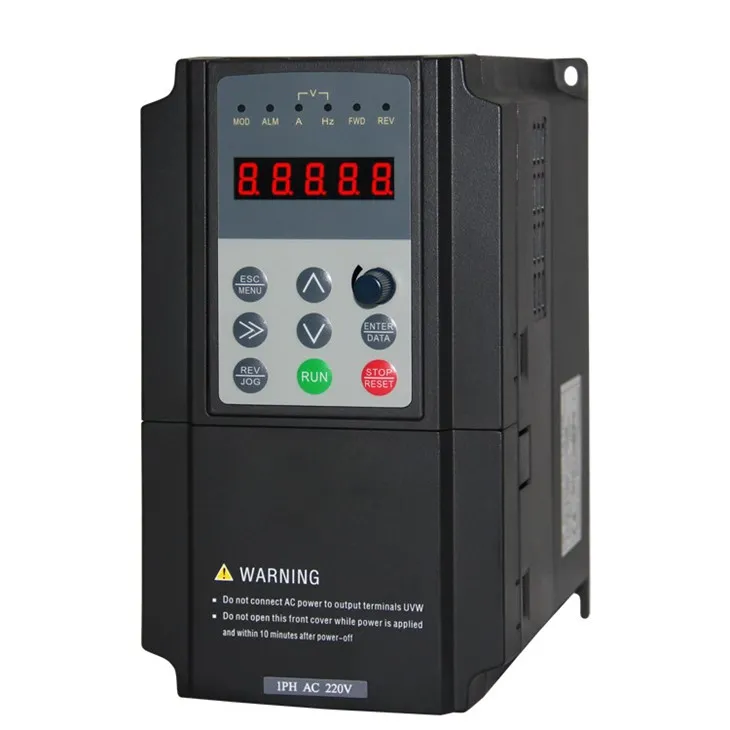

Photovoltaic frequency converter, three-phase photovoltaic pump frequency converter
XC Solar pump inverter has become an ideal choice for solar water pump system with its excellent performance and rich functions. This solar frequency converter can not only track the maximum power point of solar energy to optimize energy utilization, but also has a variety of hardware protection mechanisms, such as output phase protection and ground short circuit protection, which further improves the safety and reliability of system operation. In addition, the solar pump inverter is equipped with Modbus, CAN and Profibus-DP bus communication functions, enabling it to operate efficiently in various complex control systems, realizing remote control and data monitoring. Through a series of specialized designs, the XC solar pump converter can provide longer service life, lower failure rate and higher energy conversion efficiency.
Product features
- Protection function: with low frequency protection, sleep protection, drainage protection, overcurrent protection, minimum power protection and other protection functions.
- Default automatic operation: automatically through the keyboard; through the Internet of Things; and through the terminal
Product Specification
|
Project |
Item Description |
|
|
Import (AC side) |
Rated voltage and frequency |
Single phase 220 V level: single phase 220V, 50 Hz / 60 Hz: Three-phase 380 v level: three-phase 380V, 50Hz / 60Hz |
|
Allowable voltage fluctuation range |
Single-phase 220 V level: 200~260V Three-phase 380-volt stage: 320~460V |
|
|
Import (direct current side) |
The MPPT operating voltage is recommended |
Single-phase 220-volt stage: 330VDC Three-phase 380-volt stage: 550VDC |
|
Recommended operating voltage range |
Single-phase 220 V level: 330~400VDC Three-phase 380-volt stage: 600~750VDC |
|
|
Output |
voltage |
0～380V |
|
frequency |
0~600Hz |
|
|
overload capacity |
150% rated current for 1 min. |
|
|
Serviceability |
Run the command given to the channel |
Operation keyboard given, control terminal given, communication given, can be switched through a variety of ways. |
|
Bundle function |
The running command channel can be arbitrarily bundled and switched synchronously. |
|
|
Input output features |
Digital input channel |
8 universal digital input channel, the maximum frequency is 1 KHz, of which 1 can be used as a pulse input channel, the maximum input is 50 KHz, can be expanded to 14 channels. |
|
analog input channel |
2 channels of analog input channel, where A1 can choose 4 ~ 20 mA or 0~10V output, AI2 channel is differential input, 4 ~ 20 mA or-10~10V input is optional, can be extended to 4 channels of analog input |
|
|
Pulse output channel |
The pulse square wave signal output of 0.1 ~ 20 KHz can realize the output of physical quantities such as set frequency and output frequency. |
|
|
analog output channel |
2 channels of analog signal output, A01 channel can choose 4 ~ 20 mA or 0~10V, A02 channel can choose 4 to 20 mA or 0 ~ 010 V can realize the output of set frequency, output frequency, can be extended to 4 channels of analog output. |
|
|
Function keyboard |
The keyboard display |
Set frequency, output frequency, output voltage, output current and other parameters can be displayed |
|
Key lock |
Lock in some or all of the keys |
|
|
Defencive function |
Short circuit detection, input and output phase deficiency protection, overcurrent protection, overvoltage protection, overvoltage protection, undervoltage protection, overheating protection, overload protection, underprotection, relay suction protection, terminal protection, power failure non-stop protection, etc |
|
|
Environment |
Where to use |
Indoor, not directly exposed to sunlight, no dust, corrosive gas, combustible gas, oil mist, water steam, dripping water or salt, etc |
|
height |
Below the 1,000 m.(Above 1000 m, the output current per 1000 m decreases the rated current) |
|
|
ambient temperature |
-10℃ ~ + 40℃ (ambient temperature is 40℃ ~50℃, please reduce or enhance heat dissipation) |
|
|
The surrounding humidity |
Less than 95% RH, and the anhydrous beads were condensed |
|
|
vibrate |
Less than 5.9 m / sec ² (0.6g) |
|
|
Storage temperature |
-40℃~+70℃ |
|
|
Structure |
levels of protection |
IP20 |
|
cooling-down method |
air blast cooling |
|
|
Way to install |
Wall hanging type and cabinet type |
|
