XS5P 750W servo motor

XS5P is a 750W servo motor with excellent performance, designed for industrial applications that require high response speed and high positioning accuracy. The product supports a variety of control methods, including pulse control, MODBUS, CANopen and EtherCAT communication protocols, with excellent compatibility and flexibility. It is suitable for high-precision encoder applications, and supports EASY Tune optimization upgrade and online self-tuning functions, which greatly improves the ease of use and control accuracy. XS5P has a built-in notch filter to effectively suppress vibration, and supports S-curve control and real-time synchronous control, which not only improves production efficiency, but also significantly improves the accuracy of multi-axis synchronous control. Its rich IO interface includes 7 digital inputs, 5 digital outputs and encoder output functions, which are suitable for the needs of complex industrial systems. In addition, the 750W servo motor has overvoltage and undervoltage protection, overcurrent protection, overheating protection and short-circuit protection to ensure the stable operation of the equipment in harsh environments.

application

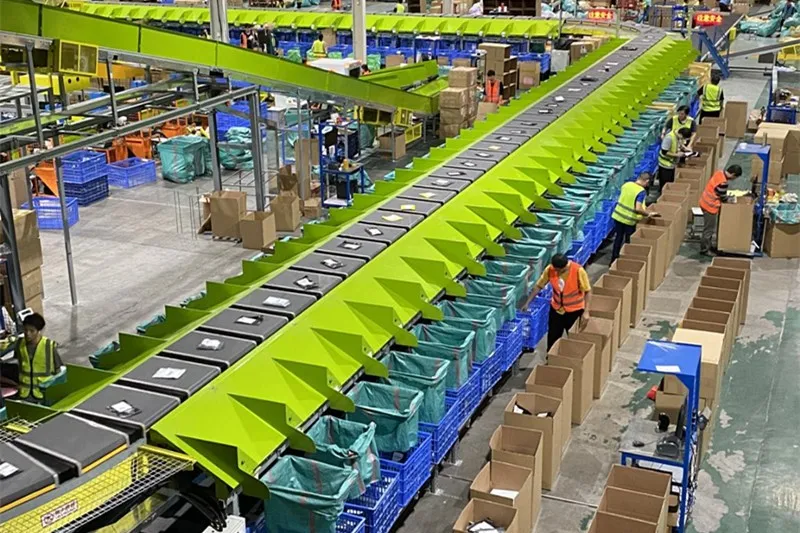

XS5P is widely used in scenarios such as the robotics industry, packaging machinery, machine tool equipment and logistics equipment, and is an ideal solution for achieving high-precision and high-efficiency control.

Product features

Support pulse control;
Support MODBUS, CANopen, EtherCAT communication control; Real-time synchronous control can effectively improve production efficiency and multi-axis synchronous control accuracy;
Driver overvoltage and undervoltage protection, overcurrent protection, overheating protection, short circuit protection, etc.

Product specification

Model parameter		XS 5 P Series
		XS415P-□A-000	XS425P-□A-000	XS425P-□F-000
Source	Power power supply	1PH200-240 WAC ± 10%50 / 60Hz ST 3 HZ
	Directory power supply	not available
Current	Maximum continuous output current (ms)	3.24	4A	5A
	Peak Electric Dian (PEAK)	154p	18Ap	18Mp
Return signal		Multi-map communication incoming ground value encoder, single-positive adjustable photoelectric encoder, multi-positive-adjustable photoelectric value encoder
Can tax action		FD425P The drive has no internal solid brake resistance, and the limit power level is 20W; if the actual power exceeds the limit power, the brake resistance shall be operated, and the main cavity is used in rapid start and stop situations).
Energy consumption braking voltage absorption point		DC380V±SV
Overvoltage alarm voltage		DC400V±SV
Use in the name of the newspaper		DC200V±SV
Cooling-down method		White cool		air blast cooling
Weight: 0 KG)		0.881	15	1.5
Position control mode	Command control mode	External knee stroke input control, using DIN signal; communication setting internal timing parameter control
	Directive smoothing	Any pass filtering (internal parameter setting 0, S curve smoothing filtering (internal parameter setting in 1 mode)
	Pulse instruction mode	Pulse + direction, COW + CW, Phase A + Phase B, (12~30V, max. 500 KHz)
	The most brain pulse rate	Differential transmission mode: up to 4 MHz, open collector transmission mode: 5 00KHz
	Electronic dentas	The setting range is Gear factionr3-32768~32767, Gear divider: 1~32767,1 / 50 \| Gearfactor / Geardivider \| 650
	torque limitation	Internal parameter setting
	Give salt to the front wall	0-100.09% (internal parameter setting)
	Position-ring sampling level rate	4KHz
Speed control mode	Command control mode	8 segment speed using DIN signal Set the internal object parameter control
	Directive smoothing	Any pass filtering (internal parameter setting
	rate limitation	Internal parameter setting
	The moment limit	Internal parameter setting
	The velocity loop sampling city rate	8KHz
Torque control mode	Command control mode	Set the internal object step number control
	Directive smoothing	Renway filtering (internal parameter setting)
	Speed Yang system	Internal parameter setting
	Electric ring ring sampling prerate	16K0Hz
Digital input	input specification	Through the COM1 terminal connection method, it can be effective at high level (12.5~30N) or low level (0~50)
	input function	The basis needs to be written, the function is as follows: drive penetration, drive error reset. Drive work horizontal control speed ring proportion control, positive limit, fish Yang position, origin angry signal, refers to the special reverse, internal continuity limit control. The internal position section controls the emergency stop and pause, starts to find the origin, command activation, tooth energy ratio switch, salt increase switch, position table function, clear pulse function, etc
Numeric output	Output specifications	The maximum voltage is DC30w, the difference between OUT 1 and OUT 2, the maximum current current is 100 mA, OUT 3 ~ 0 UTS single end, the maximum voltage is 20 mA, and the motor OUT 2 is controlled through the electrical device.
	output function	The basis needs to be defined by white, the functions are as follows: the driver is increased, the driver error, motor position, motor zero pass, motor throw smell brush the car, the motor legacy to element lead 2 signal appears, and the continuity to the positive system. The torque is set, the motor lock base, the motor limit, the origin finds multiple positions, etc
Encoder signal output function		Output W motor A, B, 2 signal, frequency division range 0~65536; for multibase synchronization, the maximum frequency 5 MHz
Defencive function		Overvoltage protection, undervoltage protection, motor overheating 0²T) protection, road protection, drive overheating protection, etc
Standard		CE,IEC61800-5-1
RS232		RS232 (Connect to PC: RS 232 Special Mini_USB)
S485		Maximum 115.2KHz baud rate support, using the Modbus RTU protocol to communicate with the controller
CANopen		It supports the to 1 MHz baud rate and can communicate with the controller using the CANopen protocol
EtherCAT		Support CoE (CiA402 protocol and CSP / CSWPP / PMPT / H time mode, communication violation rate of 100M.
Service environ-ment	working temperature	0-40℃
	Save the temperature	-10℃~70℃
	Not knot	5~95%
	levels of protection	IP20
	installation site	No dust, dry, lockable (such as electrical tung
	way to install	Inferior installation
	Install the elevation of sea dial	When the working sea is below 1000m, and the working altitude is above 1000 meters, every 100 meters rise is 1.5% lower, and the maximum working height is 4000.
	atmospheric pressure	86kpar-106kpa

Note: □= L: RS232, RS485, pulse

C: RS232, CAN, and pulse

E: RS232, EtherCAT, and pulse

XS5-R1 450W 750W servo motor

The XS5-R1 series 450W and 750W servo motors are powered by single-phase AC200~240V, and have a powerful driving capability with a rated current of 5.5A and a maximum current of 16.9A, which perfectly supports the efficient operation of the 750W servo motor. The XS5-R1 series servo drive supports Type-C and USB debugging interfaces, which is convenient for debugging and further improves the work efficiency of engineers. In addition, the drive provides a rich I/O interface, including pulse input (6 DIs) and pulse output (4 DOs), providing efficient and flexible solutions for various industrial scenarios. This series of servo motors can achieve precise control and fast response, helping the equipment to improve operating efficiency. To ensure the stable operation of the equipment, the XS5-R1 series drive is equipped with an external brake resistor function, supporting an external resistor with a minimum resistance of 40Ω, which can effectively reduce energy waste and safety hazards during equipment operation.

Product features

It uses single-phase AC200~240V power supply, with a powerful driving capability of rated current 5.5A and maximum current 16.9A.
The driver provides a rich I/O interface.
It is equipped with a brake resistor external connection function.

Product Specification

Driver Model, XS5-R -△△△△-***	A1R1	A1R6	A2R8	A5R5	A6R0
Rated current (Arms)	1.1	1.6	2.8	5.5	6.0
Maximum current (Arms)	3.9	5.9	10.1	16.9	18.0
power rating (M)	100	200	400	750	1000
Input power supply voltage specification	Monophasic AC200V-240V, -10~10%, 50 / 60Hz
Debug port	Type-C USB
Enter the port	P-type (pulse type) 6 DI, N-type (bus type) 4 DI
output port	4 DO P type machine (pulse type); 4 DO N type machine (bus type)
Brake processing function	Brake resistance external
xternal brake resistance minimum resistance value (Ω)	40	40	40	40	40
installation size	SLZE-A	SZE-A	5IZE-A	SZE-B	SZE-B

*XS5-R1-*A5R5,XS5-R1-*A6R0 without built-in brake motor
